Internet Connection Overview
Internet Connection enables internet access via the OCX network.
Internet Connection is primarily used for the following:
- Establishing an internet connection without the need for the customer to prepare their own router.
Note: Internet Connection does not provide NAT (Network Address Translation) functionality. To use NAT, please utilize the Internet Gateway.
Differences Between Internet Connection and Internet Gateway
While both Internet Connection and Internet Gateway provide internet connectivity, they differ in the following ways. Please select the appropriate resource based on your intended use.
| NAT Functionality | IPv6 | |
|---|---|---|
| Internet Connection | Not Supported | Supported |
| Internet Gateway | Supported | Not Supported |

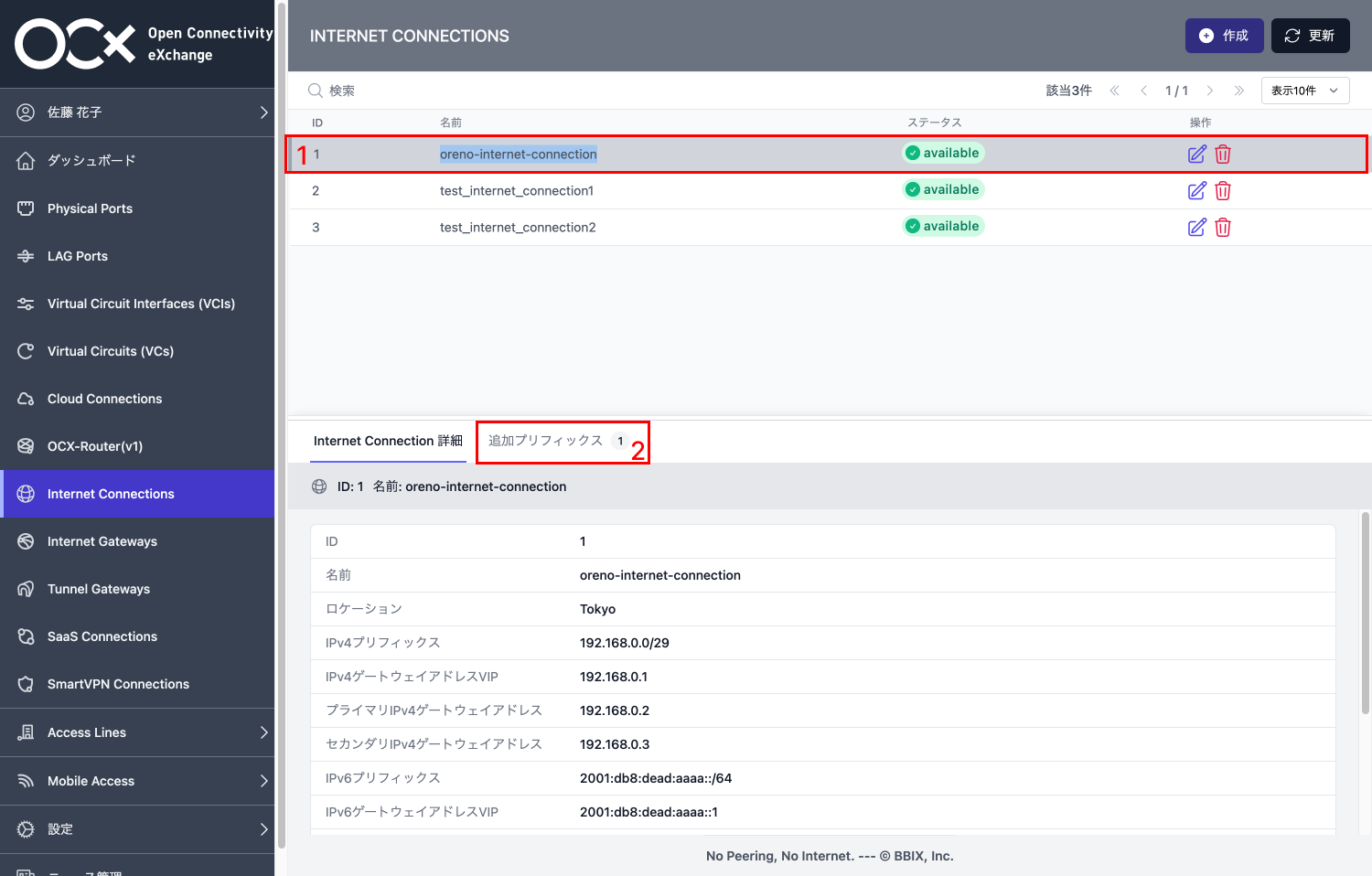

Internet Connection Configuration Items
Internet Connection enables internet connectivity by configuring the Internet Connection resources and additional prefixes as needed, followed by attaching a VC (Virtual Circuit).
| No | Configuration Item | Description |
|---|---|---|
| 1 | Internet Connection (Resource) | Creates an Internet Connection resource on the OCX network. We provide a set of an IPv4 address (/29) and an IPv6 address (/64). |
| 2 | Additional Prefix | You can create additional prefixes for the existing Internet Connection resource. We provide a set of an IPv4 address (/29) and an IPv6 address (/64). |
*For detailed operation procedures, please refer to the creation, modification, and decommissioning pages for each item.
