OCX-Router(v1) Overview
OCX-Router(v1) is a function that performs IP routing within the OCX network.
The OCX-Router(v1) is primarily used for the following purposes:
- Terminating BGP connections with the cloud without the need for customers to provide their own routers.
- Establishing Layer 3 connectivity between multiple different clouds or sites.
Remarks
Please ensure a thorough network design when building an environment that mixes static and dynamic routing using OCX-Router(v1).
Features for redistributing Static Routes and Connected routes into BGP are available; please use them as needed.

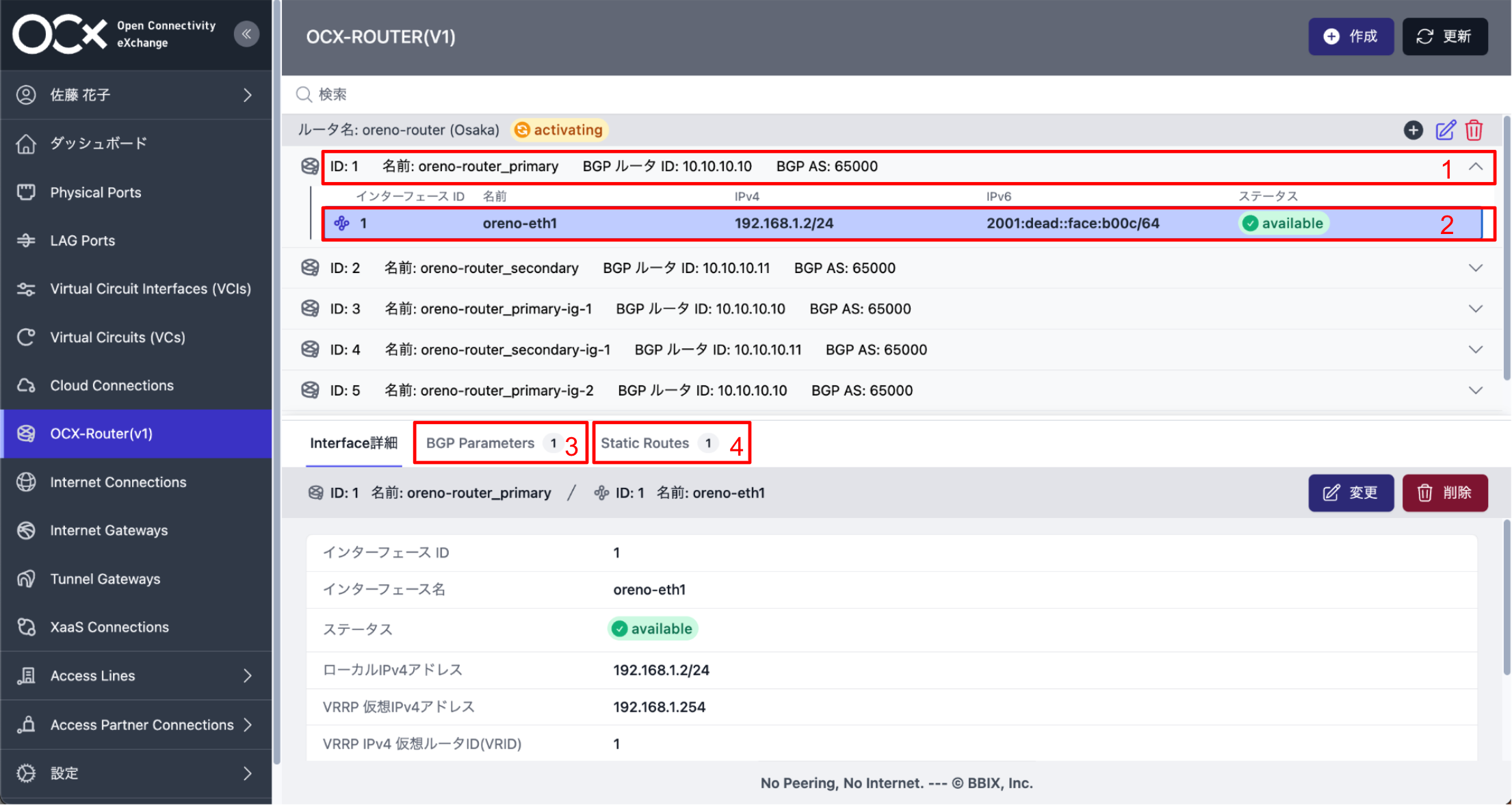

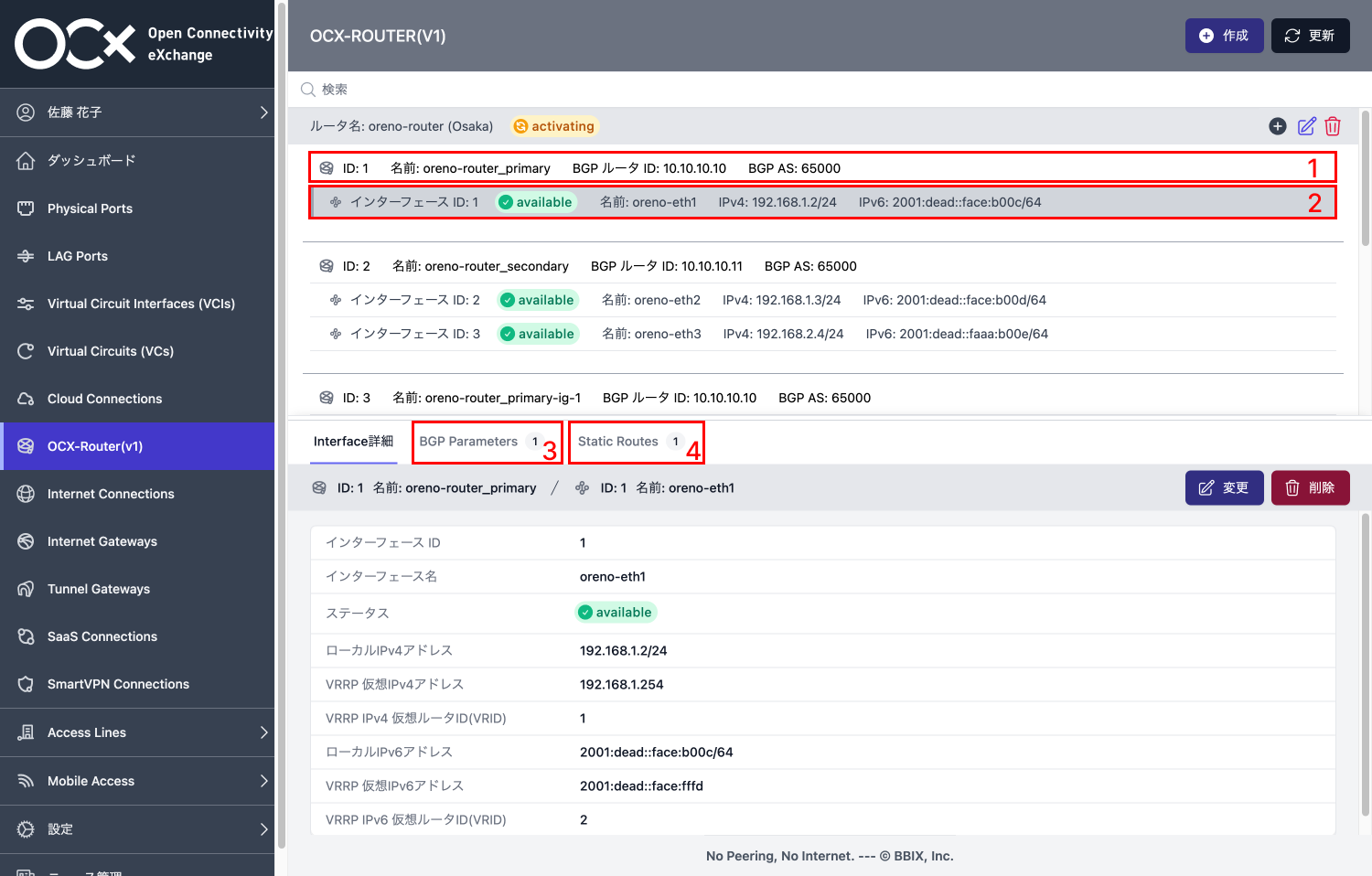

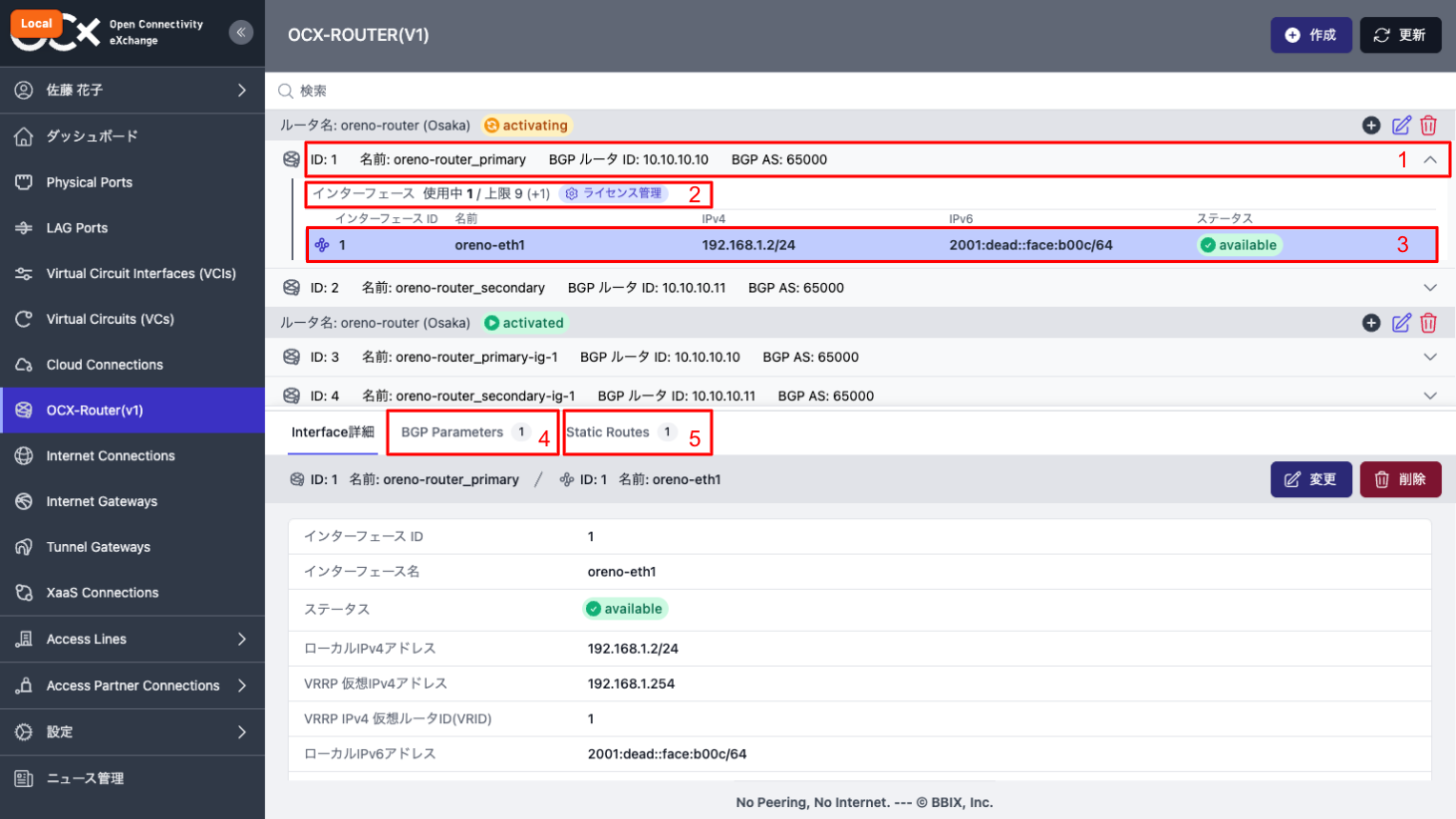

OCX-Router(v1) Configuration Items
Virtual routing is achieved by configuring the following router resource and four items as necessary, and then performing a Virtual Circuit (VC) attachment operation.
| No | Configuration Item | Description |
|---|---|---|
| 1 | OCX-Router(v1) (Resource) | Creates a router resource on the OCX network. |
| 2 | Interface | An interface for connecting between clouds or sites via the OCX network. This can be created after the OCX-Router(v1) resource is established. |
| 3 | BGP Parameter | Allows BGP connection settings to be configured for the created Interface. |
| 4 | Static Route | Allows static route settings to be configured for the created Interface. *1 |
*1: As of November 2022, only IPv4 is supported.
*For details on operation methods, please refer to the creation, modification, and decommissioning pages for each item.
