Virtual Mobile Gateway Overview
A Virtual Mobile Gateway is a gateway that provides connectivity between mobile lines and the OCX network.
Virtual Mobile Gateway Configuration Items
A Virtual Mobile Gateway requires BGP settings* for connecting to the OCX network and Address Pool settings for assigning communication IP addresses and distributing DNS server information to SIMs.
After creation, communication becomes possible by connecting to a Virtual Circuit (VC).
*This is based on an eBGP connection with an OCX-Router(v1) or on-premises equipment (CPE).

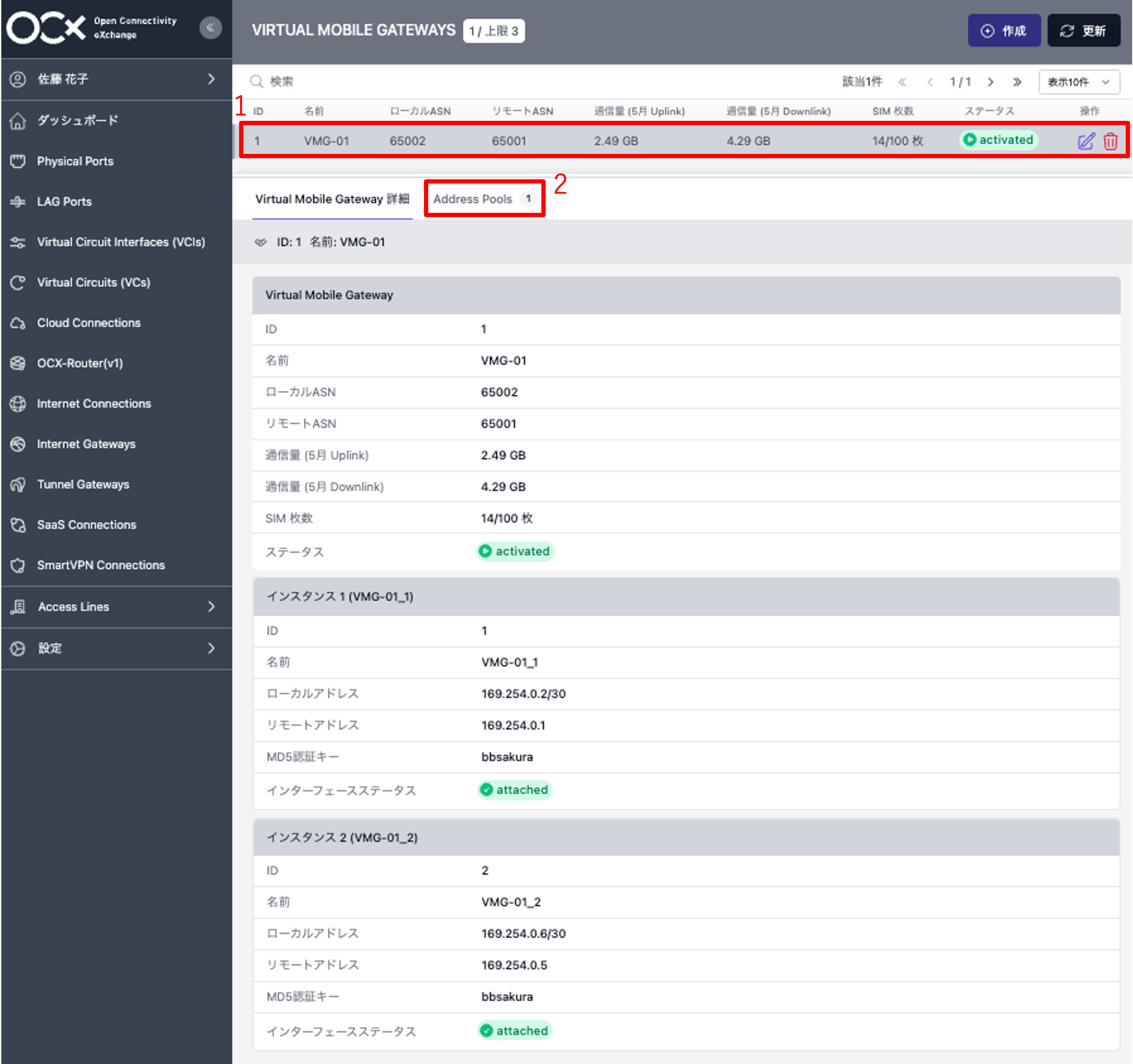

| No | Configuration Item | Description |
|---|---|---|
| 1 | Virtual Mobile Gateway (Resource) | Creates a Virtual Mobile Gateway resource on the OCX network. |
| 2 | Address Pool | Creates an Address Pool for linking SIMs to the created Virtual Mobile Gateway resource. |
| 3 | SIM Target Route | As needed, creates a SIM Target Route that delivers traffic destined for a specified IPv4 prefix to a specific SIM. |
| 4 | Direct Device Communication | As needed, allows communication between SIMs belonging to the same Virtual Mobile Gateway. Configured when creating or updating a Virtual Mobile Gateway resource. |
*For details on operation methods, please refer to the creation, modification, and decommissioning pages for each item.
